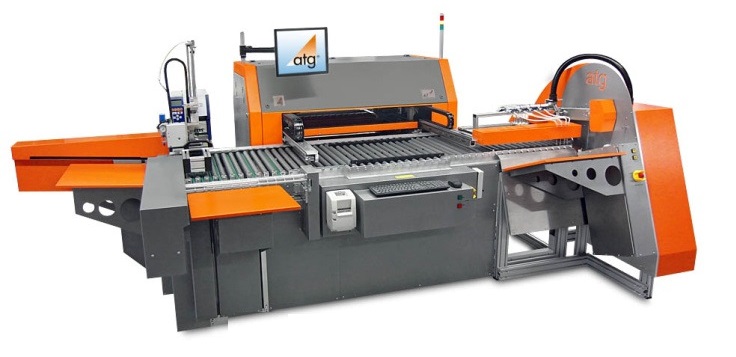

A7A 장비는 다른 종류의 module군 뿐만 아니라 다른 제품 size도 함께 적재 될 수 있는 완전 자동 system으로 구현되었습니다. 최대 635 x 535mm의 제품 size까지 테스트가 가능 하며 8개의 probe head, 4개의 camera가 장착되어 있으며, tension bar의 기능을 활용하여 panel제품 최소 16mil 두께 까지 테스트가 가능합니다. 또한 초당 최대 125측정이 가능한 speed up된 최신 설비입니다. |
|
Manual mode |
Automatic mode | |
| Max. board size (X x Y) |
635 mm x 535 mm |
635 mm x 535 mm |
| Min. board size (X x Y) |
25 mm x 25 mm |
100 mm x 100 mm |
| Test area (X x Y) | 610 mm x 510 mm | 610 mm x 510 mm |
| Board thickness | up to 7 mm | up to 5 mm |
| Loader capacity |
390 mm
240 boards / 1.6 mm thickness | |
| Cycle time automation |
< 20 s (clamping mode)
< 24 s (tensioning mode) | |
| Smallest pad | 50 μm / 2.0 mil | |
| Smallest pitch | 100 μm / 4.0 mil | |
| Resolution measurement system |
± 1 μm / ± 0.08 mil | |
| Repeatable accuracy | ± 5 μm / ± 0.2 mil | |
| Soft touch probes or | 5 g to 15 g | |
| *Micro needle probes | 0.2 g to 2.5 g |
| Continuity test | 1 Ω to 10 kΩ |
|---|---|
| Isolation test | up to 25 MΩ (FM) up to 10 GΩ (ohmic) MicroShort Detection® |
| Test voltage | up to 500 V |
| 4 color cameras (1024 x 768 pixels) for fast optical scanning of top and bottom side |
| 4-wire measurement with max. 300 mA test current | |
| 0.25 mΩ to 1 kΩ | ± 2 %, min. ± 0.025 mΩ |
|---|---|
| with Kelvin probes | 0.2 g to 5 g |
| Smallest pad | 80 μm / 3.2 mil* |
| Smallest pitch | 120 μm / 4.8 mil* |
| *with Kelvin probe fine adjustment | |
| Embedded components test | |
| R | 0.5 Ω to 10 MΩ ± 0.5 %, min ± 0.5 Ω >10 MΩ to 50 MΩ ± 2 % |
|---|---|
| C | 0.1 pF to 100 μF ± 2 %, min ± 0.03 pF |
| L | 0.2 μH to 5 mH ± 3 %, min ± 0.1 μH |
| Diode / Varistor | UR reverse voltage and UBR breakdown voltage up to 10 V |
| LaTest® open detection with LaTest® probes |
1 g to 10 g |
| High current | 1.4 A (1 kHz) |
| Label printer with barcode support | |
| Retest of fault files from external grid test systems on inquiry | |
| Repair software with barcode support | |
| Tensioning modules for flexible boards | |
| Required Utility | |
| Data Input Format | IPC-D-356A |
|---|---|
| Network Connection | Ethernet, TCP / IP |
| Power Supply | 3 x 400 V, 50 Hz (3 x 208 V, 60 Hz), 2500 VA |
| Compressed Air | 6 bar / 90 psi, filtered |
| Temperature | 18 °C to 27 °C / 66 °F to 81 °F, ± 3 K |
| Relative Humidity | 40 % to 60 % |
| Machine Weight | 1550 kg / 3175 lbs |
