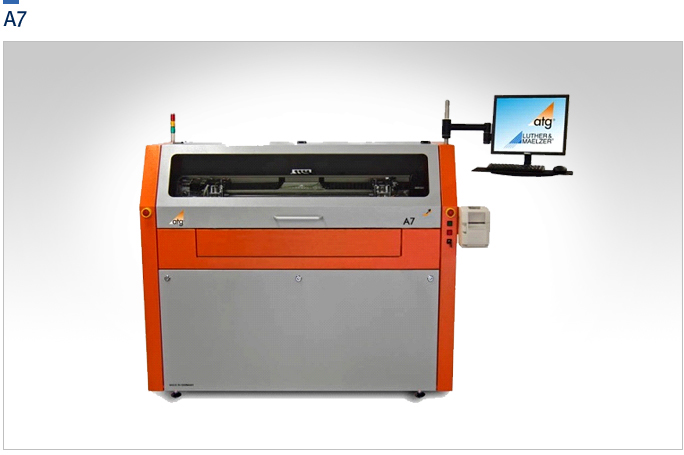

atg LM is launching an entirely new flying prober generation. The double-sided test system A7 has 8 test probes and 4 high resolution XGA color cameras for the optical scanning of PCBs. Using modern linear drives, the A7 achieves a test speed which was unimaginable 5 years ago. The acceleration of the probes now has increased from 8 g to 20 g (20 times acceleration of gravity). Despite high deceleration forces, the extremely torsion resistant and light carbon fiber axes allow precise positioning. Minimal test structures of 35 μm can be contacted. The system can be equipped with various test probes. Their contacting force can be adjusted to 0.2 g. The A7 offers a variety of test options.
Apart from the test of flexible boards, the A7 focuses on the test of embedded components. Besides, passive components such as resistors, coils, capacities, diodes and varistors can be tested. The wiring test of active ICs within the PCB is possible also.
|
| Max. board size (X x Y) | 640 mm x 610 mm / 25.2" x 24.0" |
|---|---|
| Min. board size (X x Y) | 10 mm x 10 mm / 0.4" x 0.4" |
| Test area (X x Y) | 610 mm x 510 mm / 24.0" x 20.0" |
| Board thickness | up to 10 mm / 0.4" |
| Smallest pad | 35 μm / 1.4 mil* 50 μm / 2.0 mil |
| Smallest pitch | 100 μm / 4.0 mil |
| Resolution measurement system |
± 1 μm / ± 0.04 mil |
| Repeatable accuracy | ± 4 μm / ± 0.16 mil |
| Soft touch probes or | 5 g to 15 g |
| *Micro needle probes | 0.2 g to 2.5 g |
| Continuity test | 1 Ω to 10 kΩ |
|---|---|
| Isolation test | up to 25 MΩ (FM) up to 10 GΩ (ohmic) MicroShort Detection® |
| Test voltage | up to 500 |
| 4 color cameras (1024 x 768 pixels) for fast optical scanning of top and bottom side |
|
4-wire measurement with max. 300 mA test current | |
| 0.25 mΩ to 1 kΩ | up to 500 |
|---|---|
| with Kelvin probes | up to 500 |
| Smallest pad | up to 500 |
| Smallest pitch | up to 500 |
| *with Kelvin probe fine adjustment | |
|
Embedded components test | |
| R | 0.5 Ω to 10 MΩ ± 0.5 %, min ± 0.5 Ω >10 MΩ to 50 MΩ ± 2 % |
|---|---|
| C | 0.1 pF to 100 μF ± 2 %, min ± 0.03 pF |
| L | 0.2 μH to 5 mH ± 3 %, min ± 0.1 μH |
| Diode / Varistor | UR reverse voltage and UBR breakdown voltage up to 10 V |
| LaTest® open detection with LaTest® probes |
1 g to 10 g |
| High current | 1.4 A (1 kHz) |
| Test voltage | up to 1000 V |
| Pneumatic clamping for flexible boards | |
| Retest of fault files from external grid test systems on inquiry | |
| Repair software with barcode support | |
|
Required Utility | |
| Data Input Format | IPC-D-356A |
|---|---|
| Network Connection | Ethernet, TCP / IP |
| Power Supply | 3 x 400 V, 50 Hz (3 x 208 V, 60 Hz), 1000 VA |
| Compressed Air | 6 bar / 90 psi, filtered |
| Temperature | 18 °C to 27 °C / 66 °F to 81 °F, ± 3 K |
| Relative Humidity | 40 % to 60 % |
| Machine Weight | 900 kg / 1984 lb |
