Develops and is operating 2 kind of FIXTURE TYPE to progress ELECTRICAL TEST for high density PCB product in LM digital co. ltd. Have workability that is excellent for inexpensive production cost in occasion of suitable HD TYPE (HIGH DENSITY FIXTURE) in general TEST POINT's density FP TYPE (FINE PITCH FIXTURE) is suitable to ELECTRICAL TEST of SMALL BGA product and PCB product that TEST POINT per unit area is high density

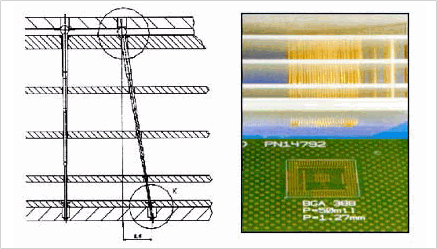

PIN's minimum diameter that use to HD FIXTURE is 0.4mm and the Maximum gradient of PIN is 2.6 GRIDs (6. 6mm). FIXTURE manufacture and ELECTRICAL TEST are possible to 8.5 MIL’s SMD PITCH in occasion of THREE FOLD ZIGZAG method to 12.8 MIL’s SMD PITCH in occasion of TWO FOLD ZIGZAG method. .


For PIN's minimum diameter that use to FP FIXTURE, as 0.15mm HD FIXTURE for FINE PITCH TEST of dense interval that FIXTURE manufacture is impossible danger and injury develop. To manufacture FIXTURE of this trouble duty of officials product, PIN's one dimension that use according as the largest tilt of PIN leans (20.32mm) as 8 GRIDs consists to be difference and display excellent accessibility at TEST work



To process FIXTURE of excellent function, it has ROUTER M/C, DRILL M/C that LM digital co. ltd.
As well as have nation's biggest sufficient SYSTEM so that can correspond actively to product of short
delivery date systematically.
